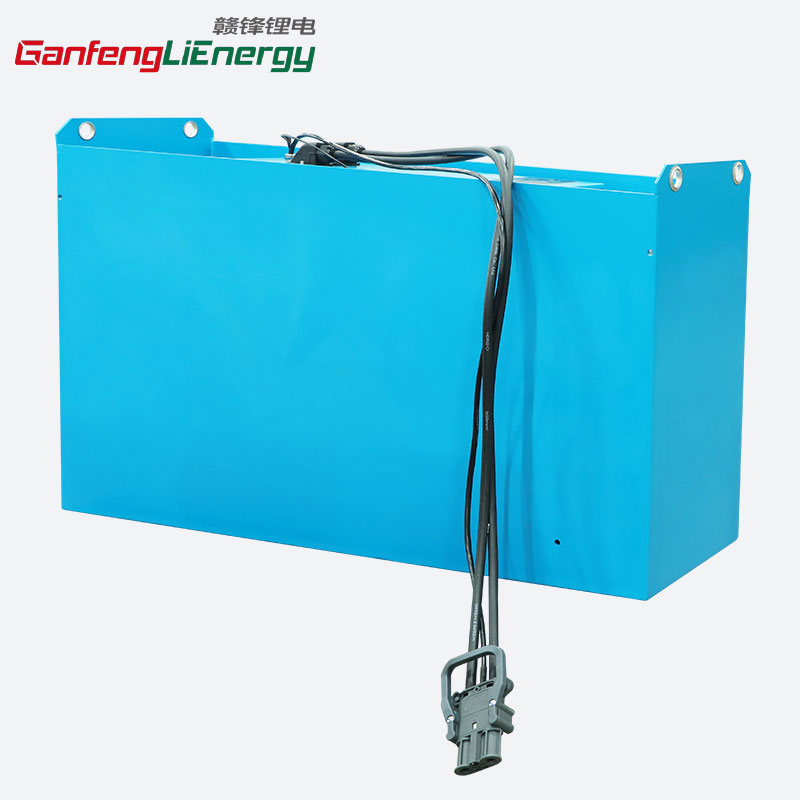

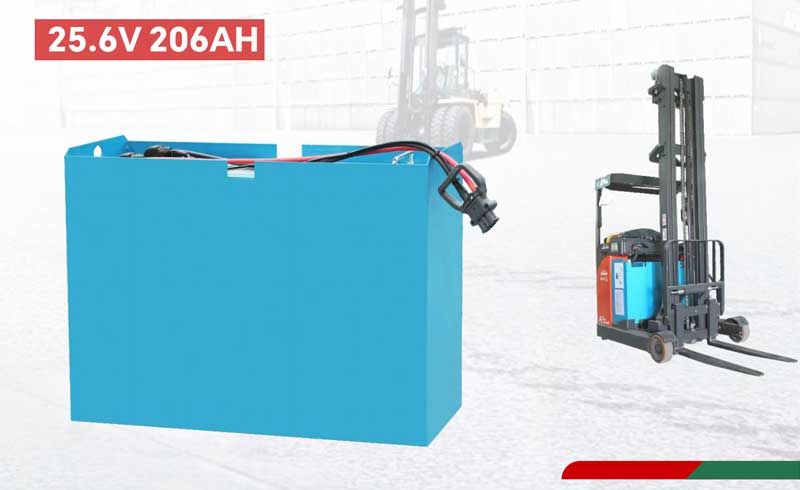

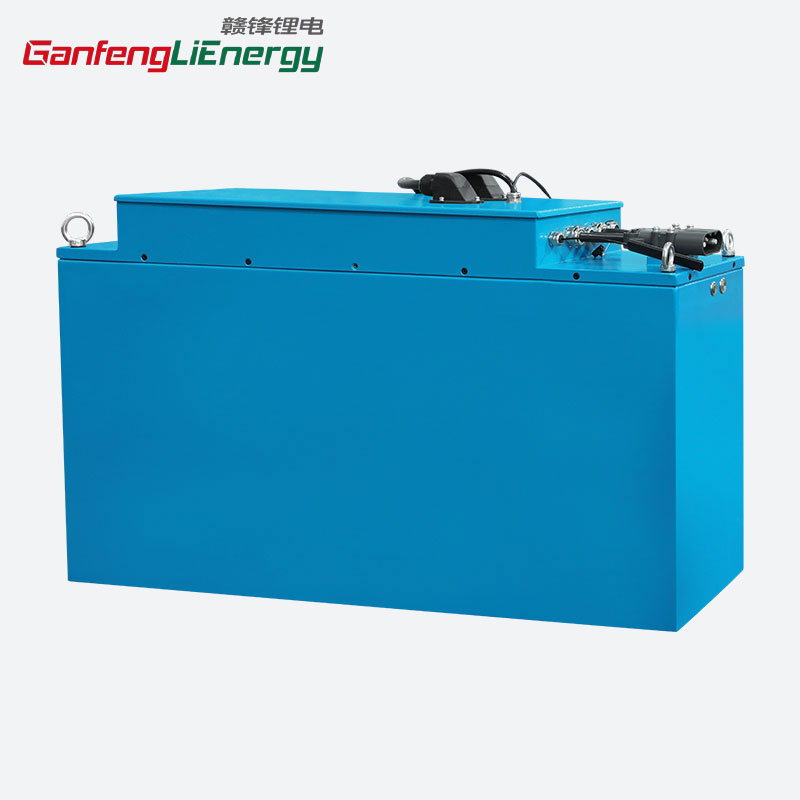

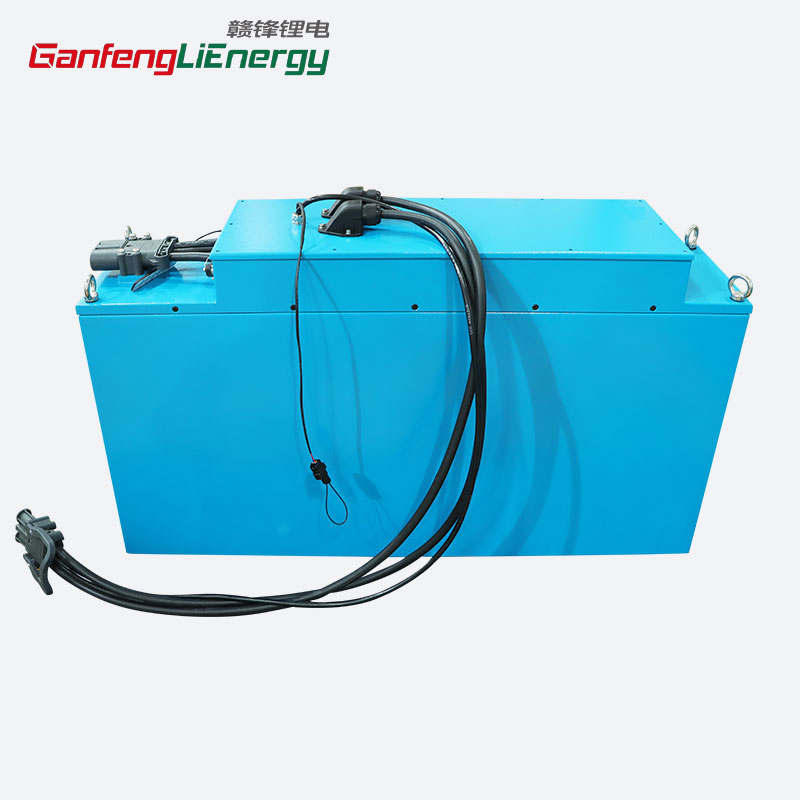

25.6V 206AH Lithium-Ion LiFePO4 Forklift Battery

GF24206

The 25.6V, 206Ah LiFePO4 Battery System, featuring 100% NEW Original Cells, delivers 5273.6Wh of high-performance energy. Designed for over 3,500 cycles at 80% DOD, it's compatible with 90% of electric forklifts, offering a maintenance-free solution with easy installation. It includes a BMS for balanced cell performance and optional 4G GPS for remote health monitoring. IP65 rated for durability, it's an efficient, long-lasting alternative to lead-acid batteries, ensuring fast charging and enhanced safety.

PDF Brochure Get Best Quote

ADVANTAGES

  • The Battery System is compatible with 90% ofelectric forklifts.
  • Clear structure,independent circuit, no need to overhaul,the electric control part of the direct replacement of moreconvenient.
  • BMS comes with balance function to maintain the sameSOC of the cells in the batterysystem. Active balanceBMS or Passive balance BMS.
  • Optional 4G GPS monitoring system, remotely view theoperating status, utilization, health monitoring and timelyelimination of abnormalities.
  • CAN Communicate with many brands of electric forkliftslike,LINDE,NOBL ELIFT,TOYOTA,HELI,JUNGHEINRICH,HANGCHA,etc.

IntelligentStructural Design

  • Charge Plug

    REMA DIN160A Female Plug 2hours to charge the battery fully

  • BMS

    Balance SOX Calibration Parameter Optimize

  • Display screen

    shows the real-time battery information

  • Discharge Plug

    Anderson 320A Support customized plug

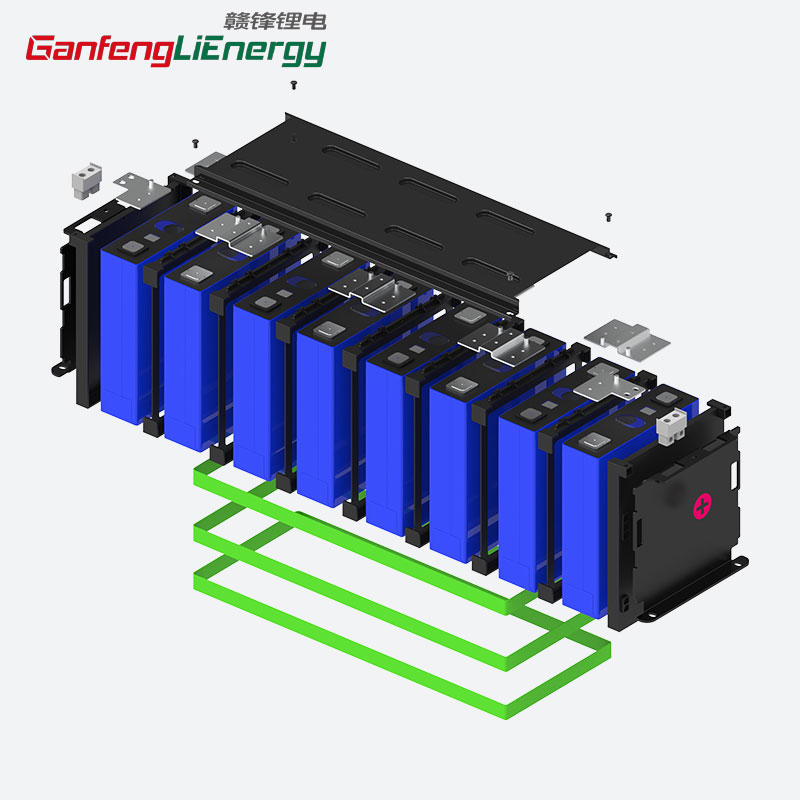

  • Battery Module:

    A grade Ganfeng battery cell with stable fixing structure

NO. Item Data Remarka
1 Rated Voltage 25.6V
2 Rated Capacity 206Ah
3 Rated Energy 5273.6Wh
4 Working Voltage 20-28.8V Cells volatge 2.5-3.6V
5 Continuous Charging Current 100A
6 Continuous Discharge Current 100A
7 Peak Current 400A(1-5s)
8 Charging Protocol CAN
9 Discharging Protocol No
10 Heating Optional
11 GPS Optional 4G
12 Charging Temperature 0~60℃
13 Discharging Temperature -20~60℃
14 Battery Display Optional Round or square meter
+3 meter Wire length
15 Protection Class IP65
16 Shipment Capacity 30%-50%SOC
17 Cycle Life SOH:>3000  cycles
@80%DOD
18 Iron Case Color Optional Black or Blue
19 Battery+Inter Case Net Weight 70KG±5%
20 Battery Dimensions (mm) _550*W195*H520 Customizable
21 Charge and Discharge Ports Optional Some Port or different
22 Charging Plug Optional
23 Discharging Plug Optional
24 Battery Switch Yes
25 Extra Weight Outer Case Optional Yes or No
26 Intelligent BMS Optional Active balance BMS or
Passive  balance  BMS
27 Battery Type Dry,lithium LiFePO4 Battery
