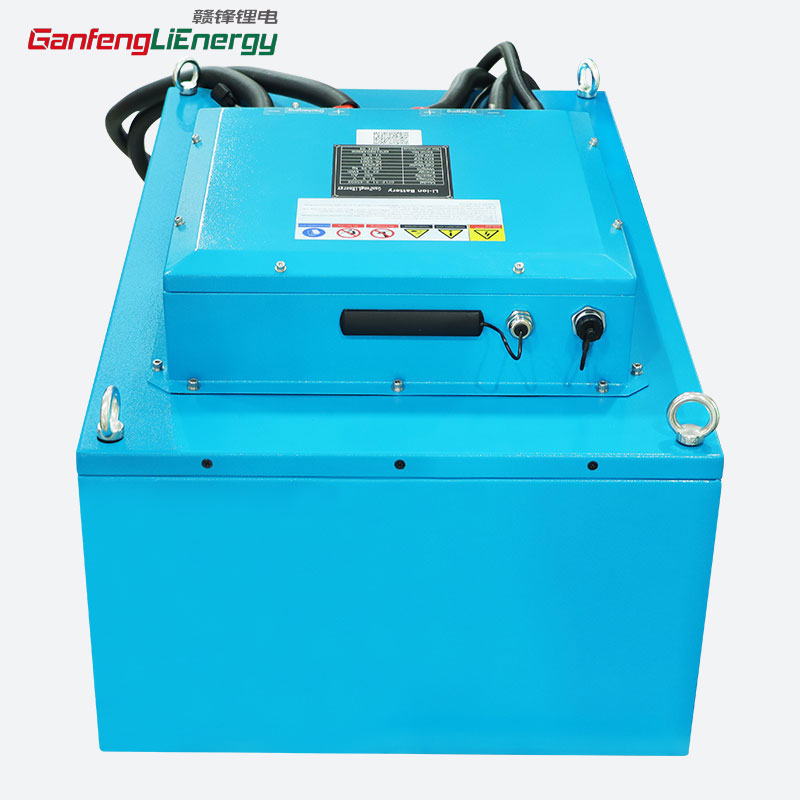

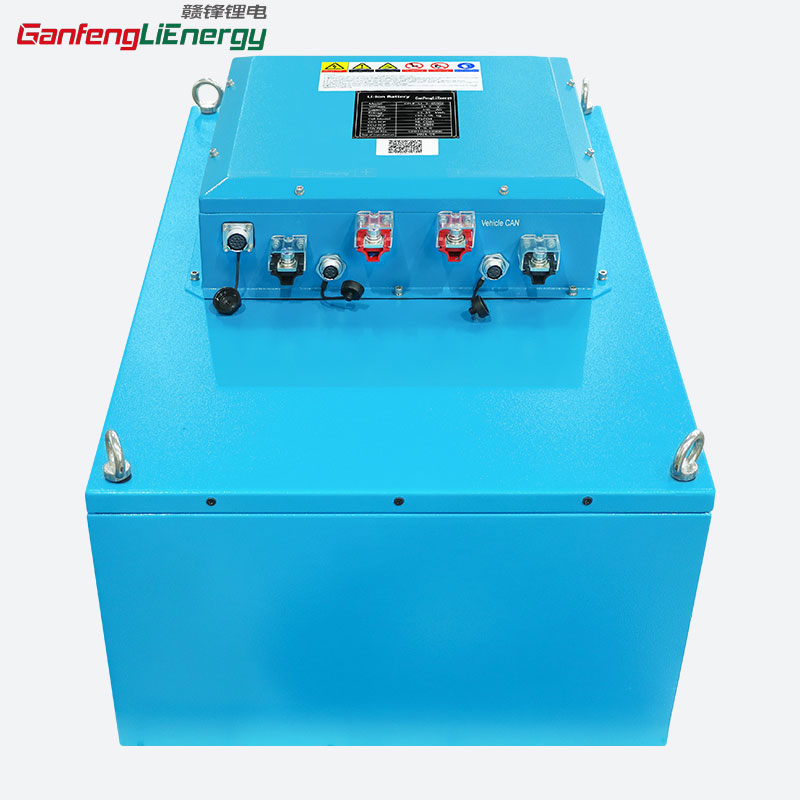

51.2V 456AH Lithium-Ion LiFePO4 Forklift Battery

GF48456

The 51.2V, 456Ah LiFePO4 Battery System delivers 23.34KWh energy, suitable for 90% of electric forklifts, including major brands. It supports over 3,000 cycles at 80% DOD, with a robust design (L830W620H460mm, 240KG, IP65 rated). Features include a maintenance-free structure, BMS with balance function, and optional 4G GPS for remote monitoring. Ideal for enhancing forklift efficiency, safety, and longevity.

PDF Brochure Get Best Quote

ADVANTAGES

  • The Battery System is compatible with 90% ofelectric forklifts.
  • Clear structure,independent circuit, no need to overhaul,the electric control part of the direct replacement of moreconvenient.
  • BMS comes with balance function to maintain the sameSOCof the cells in the batterysystem. Active balanceBMS or Passive balance BMS.
  • Optional4GGPS monitoring system, remotely view theoperating status, utilization, health monitoring and timelyelimination of abnormalities.
  • CAN Communicate with many brands of electric forkliftsike, LINDE,NOBL ELIFT, TOYOTA, HELI,JUNGHEINRICH,HANGCHA, etc.

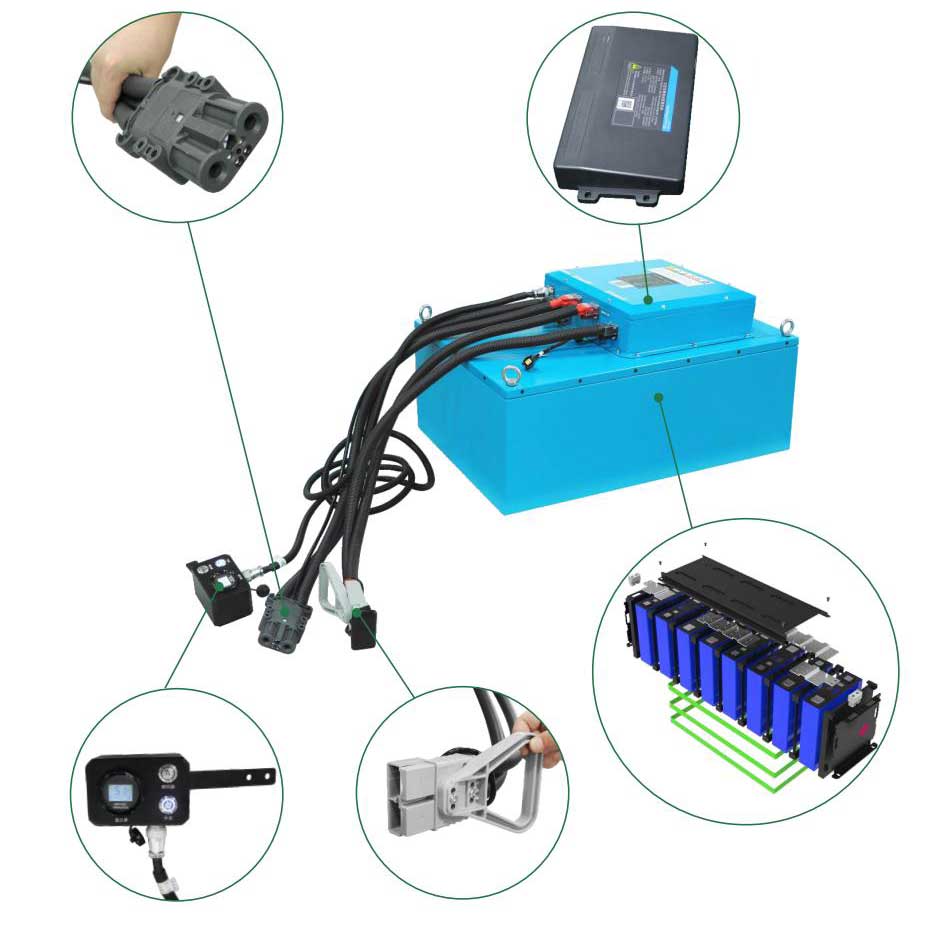

IntelligentStructural Design

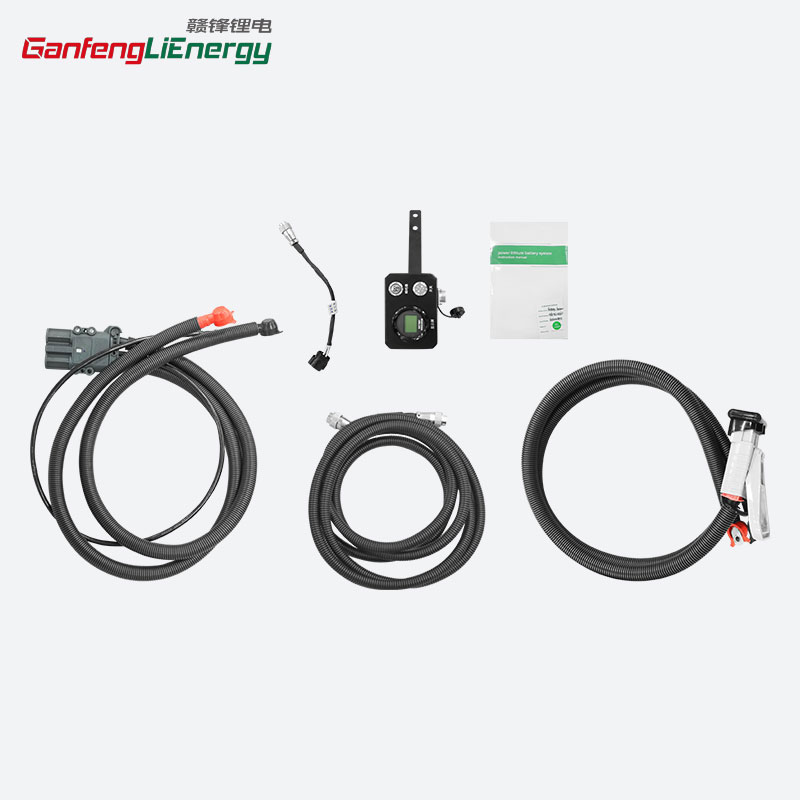

  • Charge Plug

    REMA DIN320A Female Plug 2hours to charge the battery fully

  • BMS

    Balance SOX Calibration Parameter Optimize

  • Display screen

    shows the real-time battery information

  • Discharge Plug

    Anderson 350A Support customized plug

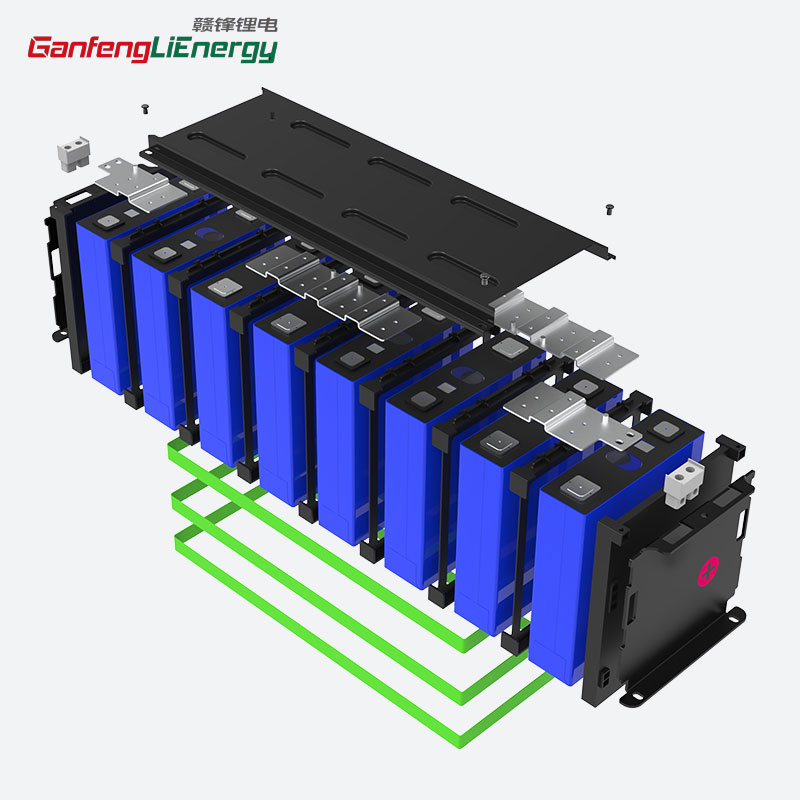

  • Battery Module:

    A grade Ganfeng battery cell with stable fixing structure

NO. [tem Data Remarka
1 Rated Voltage 51.2V
2 Rated Capacity 456Ah
3 Rated Energy 23.34KWh
4 Working Voltage 40-57.6V Cells volatge 2.5-3.6V
5 Continuous Charging Current 200A
6 Continuous Discharge Current 200A
7 Peak Current 400A(1-5s)
8 Charging Protocol CAN
9 Discharging Protocol No
10 Heating Optional
11 GPS Optional 4G
12 Charging Temperature 0~60℃
13 Discharging Temperature -20~60℃
14 Battery Display Optional Round or square meter
+3 meter Wire length
15 Protection Class IP65
16 Shipment Capacity 30%-50%SOC
17 Cycle Life SOH:>3000  cycles
@80%DOD
18 ron Case Color Optional Black or Blue
19 Battery+Inter Case Net Weight 240KG±5%
20 Battery Dimensions(mm) L830*W620*H460 Customizable
21 Charge and Discharge Ports Optional Some Port or different
22 Charging Plug Optional
23 Discharging Plug Optional
24 Battery Switch Yes
25 Extra Weight Outer Case Optional Yes or No
26 Intelligent BMS Optional Active balance BMS or
Passive  balance  BMS
27 Battery Type Dry,lithium LiFePO4 Battery
