80V 412AH Lithium-Ion LiFePO4 Forklift Battery

GF80412

The 80V, 412Ah LiFePO4 Battery System delivers 32.96KWh of energy and is compatible with 90% of electric forklifts, including major brands like LINDE, NOBLELIFT, TOYOTA. It supports over 3,000 cycles at 80% DOD, featuring a maintenance-free design, a BMS with balance options, and optional 4G GPS for remote monitoring. IP65 rated for exceptional durability.

PDF Brochure Get Best Quote

ADVANTAGES

  • The Battery System is compatible with 90% ofelectric forklifts.
  • Clear structure,independent circuit, no need to overhaul,the electric control part of the direct replacement of more convenient.
  • BMS comes with balance function to maintain the same SOC of the cells in the battery system. Active balance BMS or Passive balance BMS.
  • Optional 4G GPS monitoring system, remotely view the operating status, utilization, health monitoring and timely elimination of abnormalities.
  • CAN Communicate with many brands of electric forkliftsike, LINDE,NOBL ELIFT, TOYOTA, HELI,JUNGHEINRICH,HANGCHA, etc.

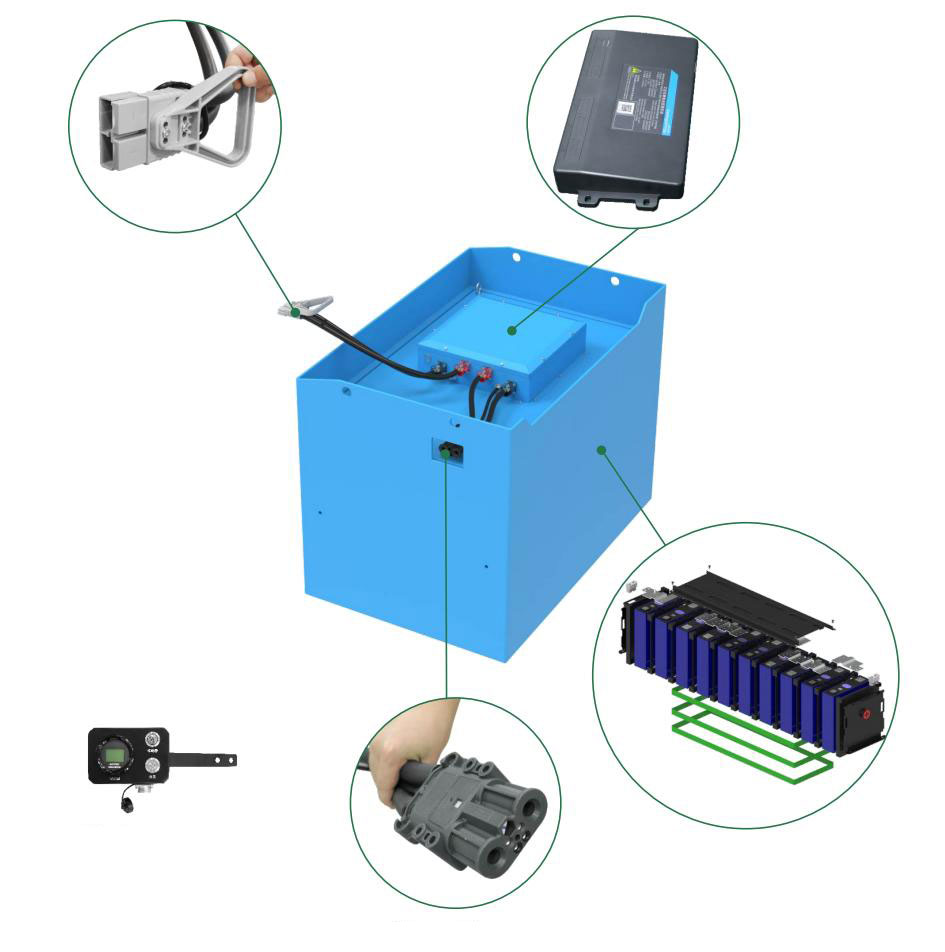

IntelligentStructural Design

  • Charge Plug

    REMA DIN320A Female Plug 2hours to charge the battery fully

  • BMS

    Balance SOX Calibration Parameter Optimize

  • Display screen

    shows the real-time battery information

  • Discharge Plug

    Anderson 350A Support customized plug

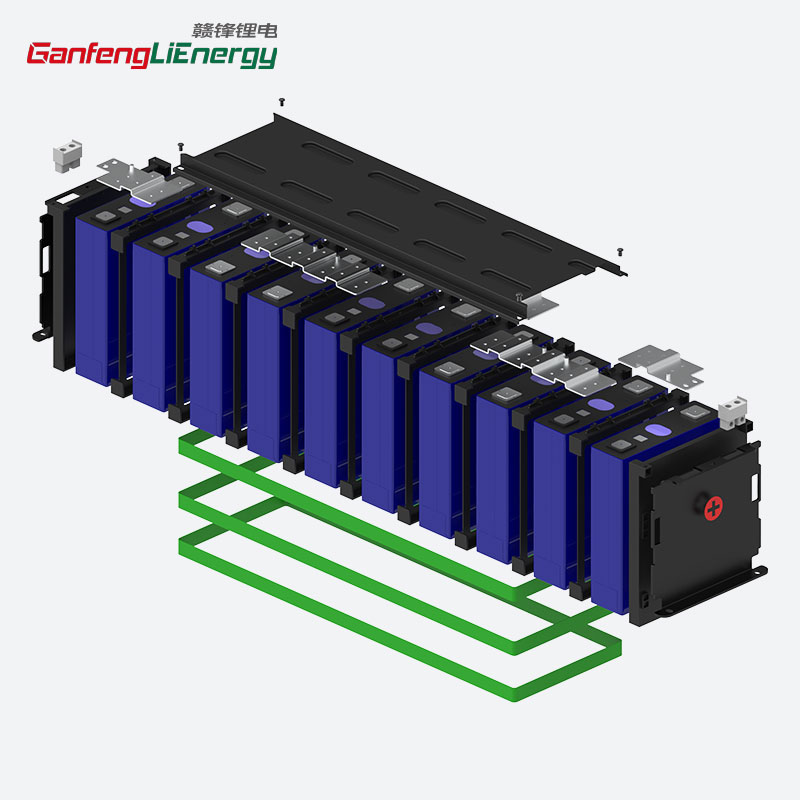

  • Battery Module:

    A grade Ganfeng battery cell with stable fixing structure

NO. [tem Data Remarka
1 Rated Voltage 80V
2 Rated Capacity 412Ah
3 Rated Energy 32.96KWh
4 Working Voltage 62.5-90V Cells volatge 2.5-3.6V
5 Continuous Charging Current 200A
6 Continuous Discharge Current 200A
7 Peak Current 400A(1-5s)
8 Charging Protocol CAN
9 Discharging Protocol No
10 Heating Optional
11 GPS Optional 4G
12 Charging Temperature 0~60℃
13 Discharging Temperature -20~60℃
14 Battery Display Optional Round or square meter
+3 meter Wire length
15 Protection Class IP65
16 Shipment Capacity 30%-50%SOC
17 Cycle Life SOH:>3000  cycles
@80%DOD
18 ron Case Color Optional Black or Blue
19 Battery+Inter Case Net Weight 380KG±5%
20 Battery Dimensions(mm) L990*W630*H410 Customizable
21 Charge and Discharge Ports Optional Some Port or different
22 Charging Plug Optional
23 Discharging Plug Optional
24 Battery Switch Yes
25 Extra Weight Outer Case Optional Yes or No
26 Intelligent BMS Optional Active balance BMS or
Passive  balance  BMS
27 Battery Type Dry,lithium LiFePO4 Battery
