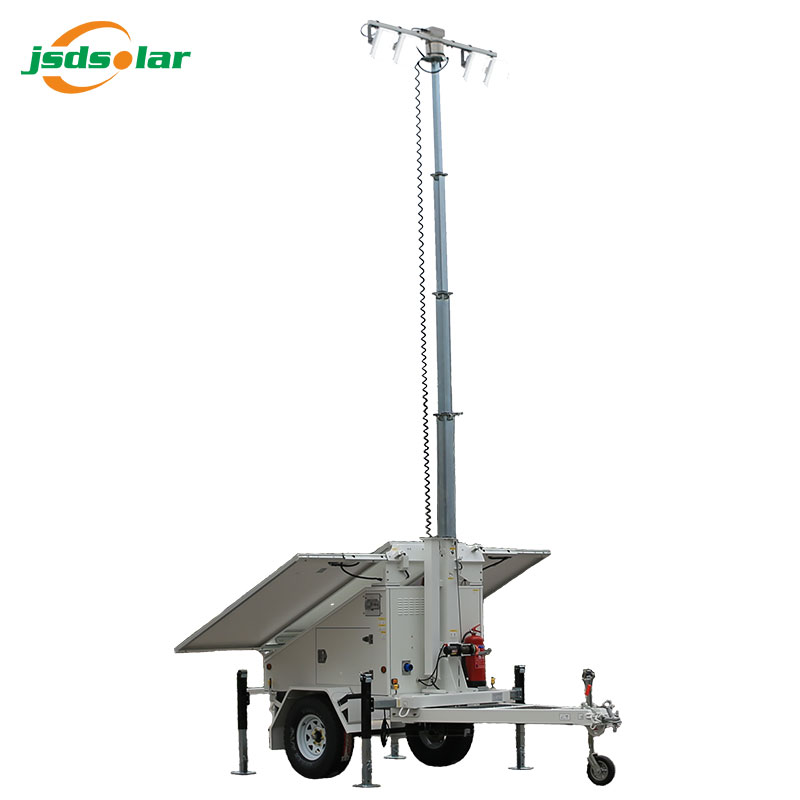

Mobile Solar Light Tower

The mobile solar light tower is an innovative and portable lighting solution, ideal for temporary illumination at construction sites, mines, airports, golf courses, squares, and more. It can also be rented, providing customers with a quick return on investment. Operating silently, it is suitable for residential areas without causing disturbances.

This light tower features four high-efficiency LED luminaires mounted on a 6-meter telescopic tower that rotates nearly 360 degrees without lowering the lights, allowing for flexible height operation. Each light can be individually adjusted without tools, maintaining its position. The tower remains vertical at all times, and its trailer has a low center of gravity for stability. The trailer can be secured to the ground to prevent movement.

The system is powered by batteries charged through high-efficiency solar cells using a photovoltaic inverter system with MPPT technology. The charging process is fully automated. Additionally, the control system can output 3KVA of power, supporting various electrical appliances such as air conditioners, fans, refrigerators, and water pumps. In case of battery depletion, the system can quickly recharge using mains power, ensuring readiness for emergencies.

ADVANTAGES

  • Solar power generation, no fuel required, no emissions
  • Use recyclable lithium batteries, no pollution and long life
  • Portable trailer, easy to move and transport
  • Multi-directional adjustable and tiltable LED lights
  • Large capacity battery, can be used for many rainy days
  • Simple operation, easy to use, personal safety is guaranteed

General Specification
Min Dimension (mm)
2230x1750x2540
Max Dimension(mm)
3330x2500x7000
Weight (Kg) 1250

Mast extension

Electric
Mast Height (m)
6
Wind Rating Speed 100 km/h
Trailer Type Single Axle

Tire and Rim Size

15"
Stabalizer Supports 4 (Manual)
Drawbar
A Frame

Tow Hitch

50mm ball hitch
Mud Guard Special Design
Working Temperature
-35~60 ℃
Waterproof
IP65
Floodlights
Type
LED
Power(W) 4x100

Lumen

64000 Lumens
Housing Materials Aluminum Housing
Batteries
Type lithium battery (LiFePO4)
Quantity 2x230AH (DC25.6V)
Capacity(WH)
11776
Solar Panels
Type Monocrystalline silicon
Power(W)
3x435
Hybrid Solar Inverter
Rated input voltage(Vac)
230
Maximum input current (A)
30
Rated output voltage (Vac)
230
Rated output power(W) 3000
Frequency (Hz) 50 or 60(Can be set)
AC charging current(A) 0~80A(Can be set)
Solar charging current (A) 0~60A(Can be set),MPPT
Standard
Trailer Standard AU/US/EU
